UNITED FITTING
STRAP CONNECTOR - ALUMINUM
Home » Products » FLEX & NM & SE » STRAP CONNECTOR - ALUMINUM

loading

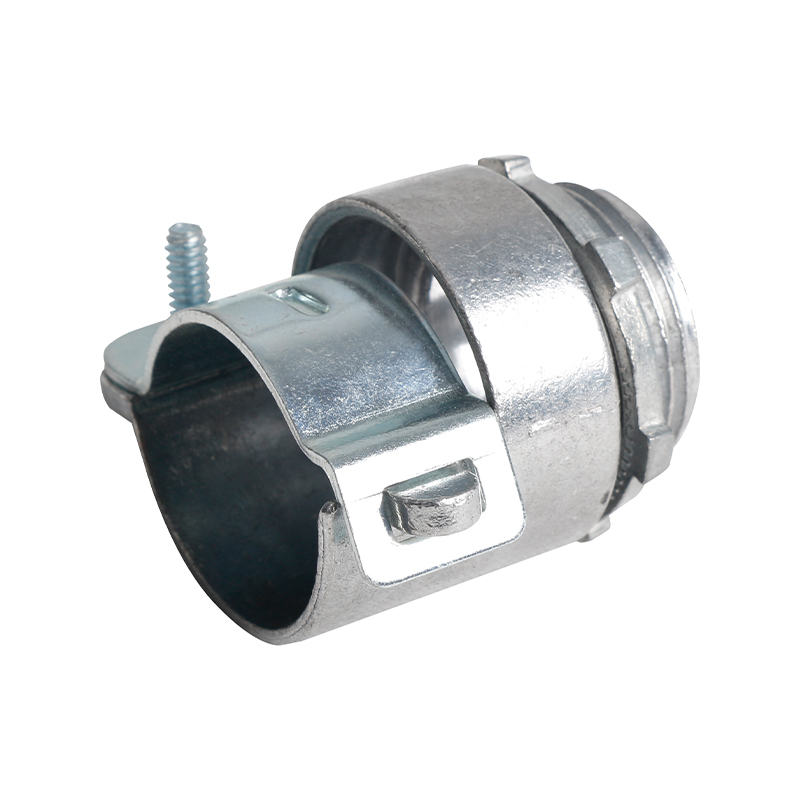

STRAP CONNECTOR - ALUMINUM

Conduit Fittings

  • 82071-82076

  • UL

  • E315256

Availability:
Quantity:
Inquire Add to Basket

CATALOG NUMBER TRADE SIZE INNER CARTON MASTER CARTON
82071 1/2" 25 250
82073 1" 10 100
82074 1-1/4" 5 50
82076 2" 10 40

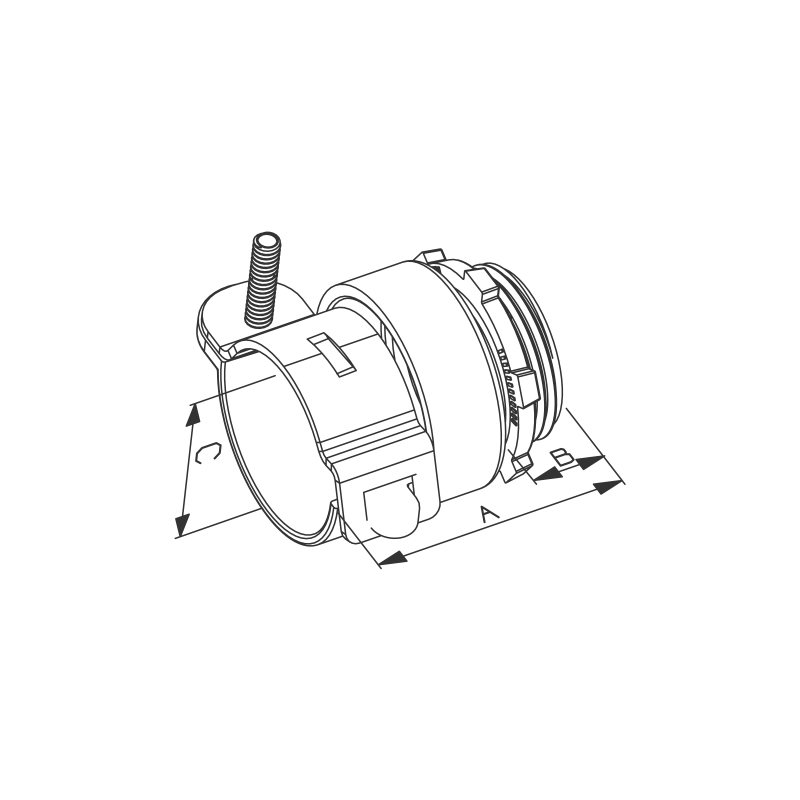

CAT# A B C (MIN) C (MAX)
82071 1.559 0.535 0.400 0.950
82073 1.933 0.565 0.620 1.400
82074 2.315 0.654 0.500 1.380
82076 2.657 0.650 0.900 2.040
