UNITED FITTING
EMT CONNECTOR - COMPRESSION TYPE WITH INSULATING THROAT - ZINC DIE CAST
Home » Products » EMT & RIGID » EMT CONNECTOR - COMPRESSION TYPE WITH INSULATING THROAT - ZINC DIE CAST

loading

EMT CONNECTOR - COMPRESSION TYPE WITH INSULATING THROAT - ZINC DIE CAST

Conduit Fittings

  • 88046-A-88055-A

  • UL

  • E315281, E315256

Availability:
Quantity:
Inquire Add to Basket

CATALOG NUMBER TRADE SIZE INNER CARTON MASTER CARTON
88046-A 1/2" 50 500
88047-A 3/4" 25 250
88048-A 1" 15 150
88049-A 11/4" 10 100
88050-A 11/2" - 10
88051-A 2" - 10
88052-A 21/2" - 12
88053-A 3" - 12
88054-A 31/2" - 10
88055-A 4" - 6

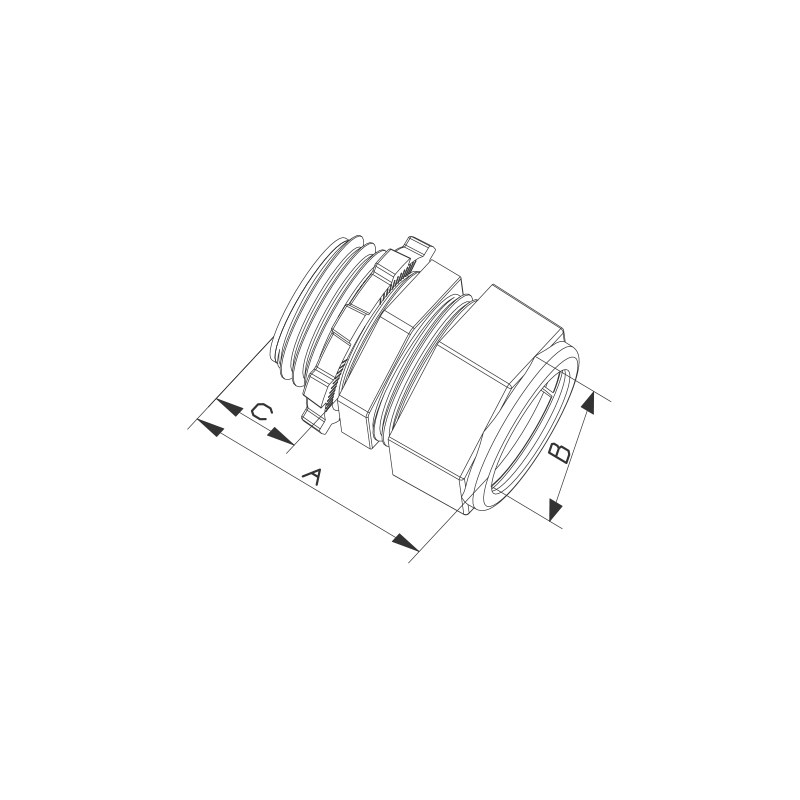

CAT# A B C
88046-A 1.315 0.965 0.492
88047-A 1.268 1.264 0.492
88048-A 1.643 1.516 0.606
88049-A 1.697 1.906 0.654
88050-A 1.953 2.276 0.701
88051-A 2.225 2.610 0.835
88052-A 2.689 3.311 1.083
88053-A 2.869 4.210 1.083
88054-A 2.849 5.060 1.019
88055-A 2.918 5.350 1.166
